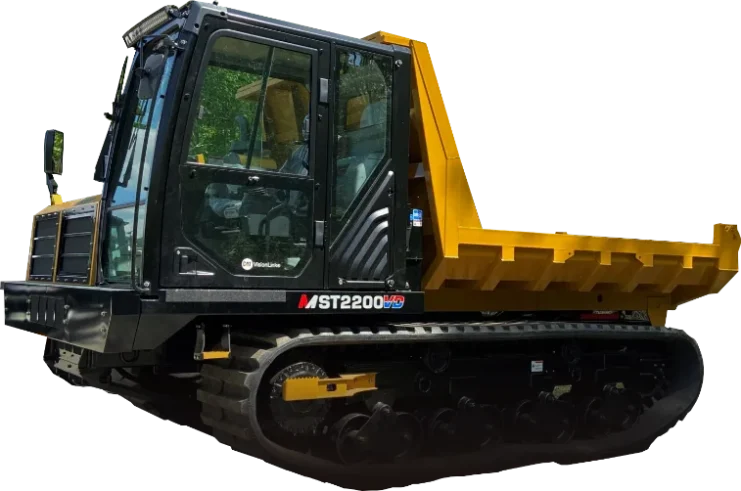

Morooka MST-2200VD Tracked Carrier
- Description
- Additional information
Description
Machine summary
The Morooka MST-2200VD Crawler Carrier is ideal for mid-to-large-scale earthmoving and hauling jobs that require transporting large quantities of material fast and safely, especially over rough, uneven, or sensitive terrain.
DESCRIPTION
The Morooka MST-2200VD is part of our Crawler Carrier rigid series (no rotating upper structure), aiming for ease of use and safety.
The MST-2200VD 9′ 8″ overall width and 30″ track width make it a high-stability, low-ground-pressure carrier that safely moves through floodplain, wetland, soft soil, and unimproved or rugged terrain. Due to the minimized surface disturbance, the Morooka MST-2200VD is a suitable piece of equipment for accessing eco-sensitive sites.
With a 250 HP engine and a bed volume capacity of 9 yd³, the Morooka MST-2200VD rugged terrain carrier can carry a maximum load of 28,396 lb and reach a max speed of 8.5 mph.
The MST-2200VD is a terrain-adaptive equipment and material carrier that can go to areas inaccessible to wheeled dump trucks.
Morooka MST-2200VD
SPECS
Machine Weight
31,820 lb (14,433 kg)
Overall Length
20′ 2″ (6,147 mm)
Overall Width
9′ 8″ (2,946 mm)
Overall Height
10′ 5″ (3,175 mm)
Ground Clearance
15″ (508 mm)
Gauge
6′ 9″ (2,050 mm)
Track Width
30″ (750 mm)
Length of Dump Bed
11′ 10″ (3,607 mm)
Width of Dump Bed
8′ (2,440 mm)
Fuel Capacity
57 Gallons (215.8 L)
Engine MFG
CATERPILLAR® C7.1
Engine HP
250 HP Diesel
Transmission
HST (Hydrostatic)
Travel Speed
Up to 8.5 mph (13.7 km/h)
Min Ground Pressure
3.6 PSI (2,531 kg/m²)
Max Ground Pressure
6.3 PSI (4,429 kg/m²)
Payload Capacity
24,251 lbs (11,000 kg)
Est. Vol Capacity of Dump Bed
9 yd³ (6.9 m³)
360º Swivel Dump
No
What Can You Do with an MST-2200VD Rental?
- Low-impact material transport during pipeline and utility ROW clearing.
- Transport supplies and crew to remote job sites.
- Haul debris, crews, and materials across flooded or fire-affected zones.
- Minimize downtime in forest, quarries, and mountain ROWS (Right-Of-Way).
- Protect fragile habitats while hauling material.
QUESTIONS & ANSWERS
Q. What’s the maximum payload of the MST-2200VD?
This terrain-adaptive equipment carries up to 24,251 lbs.
Q. Does the MST-2200VD feature a cabin or canopy?
This unit features a ROPS (Roll-Over Protective Structure) cabin w/heat & AC.
Q. Can it handle extreme terrain or deep mud?
Absolutely. Its wide tracks and high ground clearance give it top performance in harsh conditions.
Q. Is the carrier hard to operate?
No. Controls are intuitive, and the spacious cab makes operation comfortable and safe.
Q. How quickly can I get the MST-2200VD delivered?
Most rentals can be delivered to your site within 24–48 hours.
Q. Is a 360° swivel dump included?
No. If your project requires a Crawler Carrier with a swivel bed, go for the MST-2200VDR.
Q. Do I need special training to rent this carrier?
Basic operation is straightforward, and our team provides support and guidance.
Q. What types of jobs is this crawler carrier ideal for?
Construction, mining, pipeline, environmental projects, and disaster response.
Q. Can I rent for short or long-term projects?
Yes. Flexible rental periods are available.
Q. Are there rental purchase options for Crawler Carriers?
Yes. Call or use live chat for more info. Our team is ready to help!
Q. How do I book or get a quote?
Click “Request a Quote,” call, or use live chat. Our team is ready to help!
COMPARE MACHINES
[yith_woocompare_table products=”487,484,479″]
Additional information
| Max Forward Speed | 13.5 km/h (8.5 mph) |
|---|---|
| Overall Width | 9’6” (2.9m) |
| Load Body Width | 8’ (2.44m) |
| Max Payload | 11,000 kg (24,255 lbs.) |
