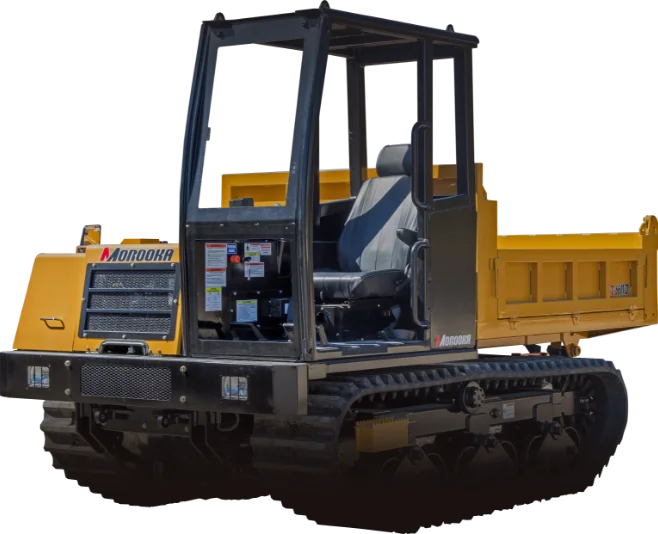

Morooka MST-660VD Crawler Carrier (cabin)
- Description
Description
Machine summary
The Morooka MST-660VD Crawler Carrier is ideal for small-scale earthmoving and hauling jobs that require transporting large quantities of material fast and safely, especially over rough, uneven, or sensitive terrain.
DESCRIPTION
The Morooka MST-660VD is part of our Crawler Carrier rigid series (no rotating upper structure), aiming for ease of use and safety.
The MST-660VD 6′ 8″ overall width and 20″ track width make it a high-stability, low-ground-pressure carrier that safely moves through floodplain, wetland, soft soil, and unimproved or rugged terrain. Due to the minimized surface disturbance, the Morooka MST-660VD is a suitable piece of equipment for accessing eco-sensitive sites.
With a 74 HP engine and a bed volume capacity of 3 yd³, the Morooka MST-660VD rugged terrain carrier can carry a maximum load of 9,878 lb and reach a max speed of 7.5 mph.
The MST-660VD is a terrain-adaptive equipment and material carrier that can go to areas inaccessible to wheeled dump trucks.
Morooka MST-660VD
SPECS
Machine Weight
10,400 lb (4,717 kg)
Overall Length
12′ 6″ (3,810 mm)
Overall Width
6′ 8″ (2,032 mm)
Overall Height
8′ 5″ (2,565 mm)
Ground Clearance
14″ (356 mm)
Gauge
4’ 9″ (1,448 mm)
Track Width
20″ (500 mm)
Length of Dump Bed
7′ 4″ (2,235 mm)
Width of Dump Bed
5′ 10″ (1,778 mm)
Fuel Capacity
22 Gallons (83.3 L)
Engine MFG
KUBOTA® V3307
Engine HP
74 HP Diesel
Transmission
HST (Hydrostatic)
Travel Speed
Up to 7.5 mph (12 km/h)
Min Ground Pressure
3.6 PSI (2,531 kg/m²)
Max Ground Pressure
6.7 PSI (4,711 kg/m²)
Payload Capacity
8,378 lbs (3,800 kg)
Est. Vol Capacity of Dump Bed
3 yd³ (2.3 m³)
360º Swivel Dump
No
What Can You Do with an MST-660VD Rental?
- Low-impact material transport during pipeline and utility ROW clearing.
- Transport supplies and crew to remote job sites.
- Haul debris, crews, and materials across flooded or fire-affected zones.
- Minimize downtime in forest, quarries, and mountain ROWS (Right-Of-Way).
- Protect fragile habitats while hauling material.
QUESTIONS & ANSWERS
Q. What’s the maximum payload of the MST-660VD?
This terrain-adaptive equipment carries up to 8,378 lbs.
Q. Does the MST-660VD feature a cabin or canopy?
This unit features a ROPS (Roll-Over Protective Structure) cabin w/heat & AC.
Q. Can it handle extreme terrain or deep mud?
Absolutely. Its wide tracks and high ground clearance give it top performance in harsh conditions.
Q. Is the carrier hard to operate?
No. Controls are intuitive, and the spacious cab makes operation comfortable and safe.
Q. How quickly can I get the MST-660VD delivered?
Most rentals can be delivered to your site within 24–48 hours.
Q. Is a 360° swivel dump included?
No. If your project requires a Crawler Carrier with a swivel bed, the MST-40CR is a similar, more modern unit.
Q. Do I need special training to rent this carrier?
Basic operation is straightforward, and our team provides support and guidance.
Q. What types of jobs is this crawler carrier ideal for?
Construction, mining, pipeline, environmental projects, and disaster response.
Q. Can I rent for short or long-term projects?
Yes. Flexible rental periods are available.
Q. Are there rental purchase options for Crawler Carriers?
Yes. Call or use live chat for more info. Our team is ready to help!
Q. How do I book or get a quote?
Click “Request a Quote,” call, or use live chat. Our team is ready to help!
