JLG E400AJPN Boom Lift
The E400AJPN Articulating Boom Lift isn’t just designed for hard to reach jobs, but to maneuver around high obstacles, increase worker safety, and lift materials. The 40’ platform height, up and over height of 21’6” and Automatic Traction Control, make this boom lift one of the most industry diverse heavy equipment rentals in our entire fleet. With its longer duty cycles and optional jib with 144 degrees of rotation capability, it’s also one of the most jobsite flexible. Whether it’s electrical or cable repair, foresting or construction, you’ll save time and money with our guaranteed lowest boom lift rental rates. If you need a little more material lifting power, view our telehandler equipment rental options.

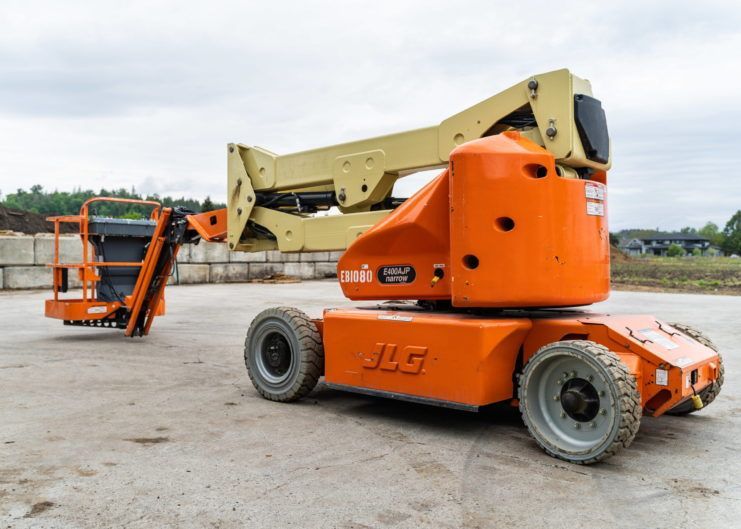

Articulating boom lifts tend to have a larger footprint (up to 8 feet) to accommodate the weight and maneuverability of the bendable joints, but the base of the E400AJPN is just 4’11”, with a wheelbase of 6’7”. That doesn’t compromise it’s capabilities, though. The platform capacity is still 500 lb / 226.80 kg. With the traction control and narrow base, you can get around worksite obstacles and reach windows, electrical boxes, cabling, and more, whether the job site is indoors or out.
Power: The Articulating Boom Lift E400AJPN has an operating weight of 6758.53 kg (14900 lbs). Environmental efficiency (zero emissions) and longer duty cycles thanks to its 8 x 6V, 370 amp-hr batteries and 48 Volts DC electrical system. With the platform lowered, it has a drive speed of 4.83 km/h (3 mph).

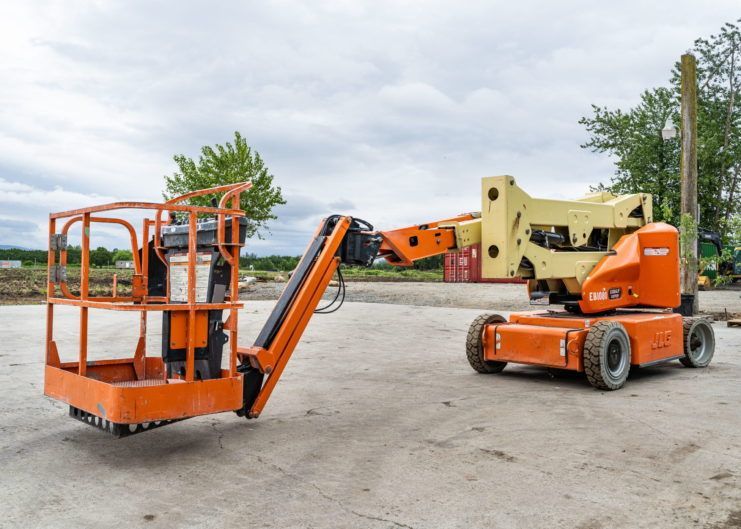

Performance: With the optional job, the range of articulation is 144 degrees, but the swing is 360 degrees, non-continuous. When used outside, the turning radius is 10’4”. Though it offers just two wheel drive, the automatic traction control, width under 5”, and longer duty cycles makes it an optimal choice for hard to reach outdoor job sites.

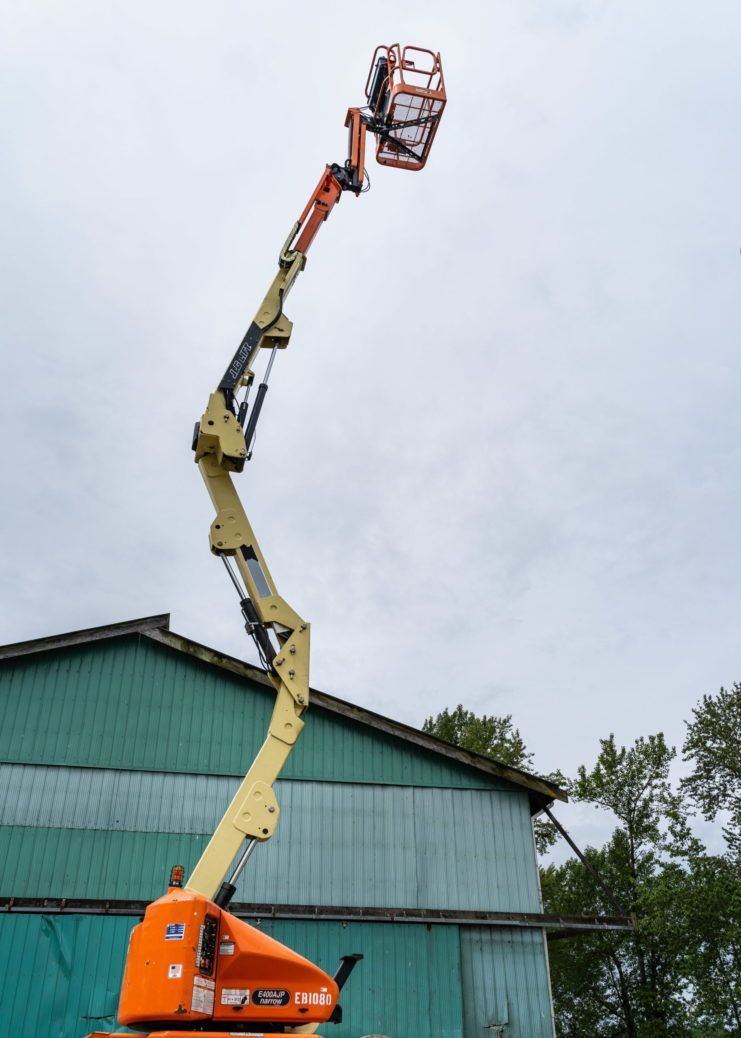

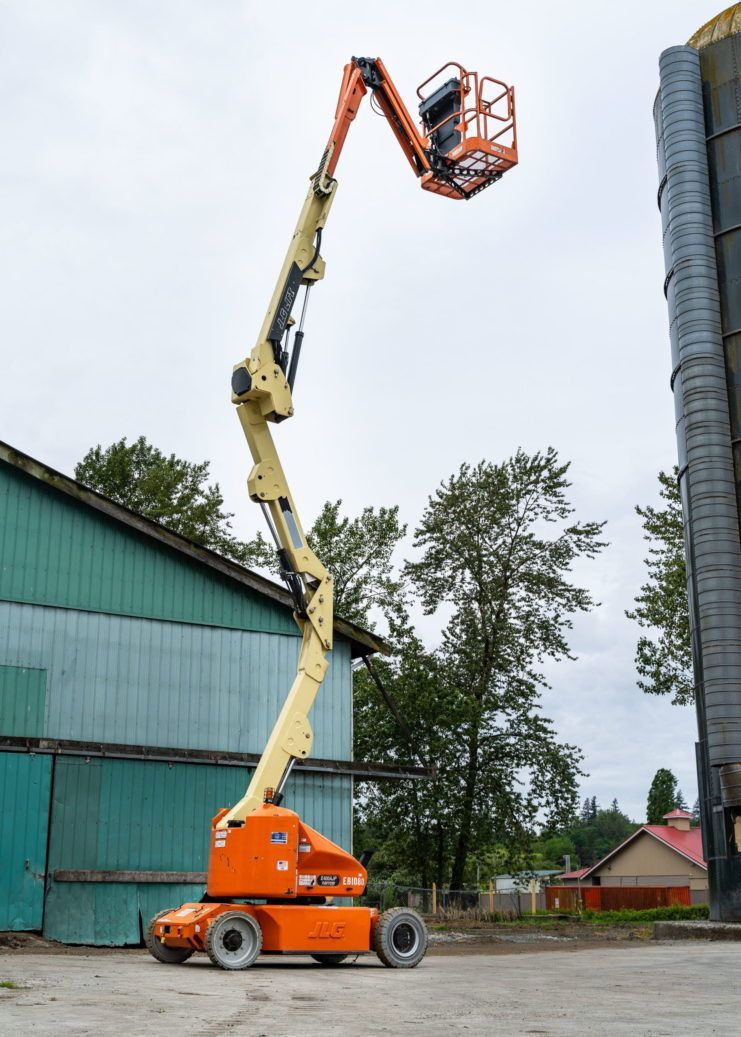

Versatility: The up and over access of 21’6”, horizontal reach of 22’5”, platform height of 40’, optional jib, and narrow base make this one versatile, cost effective piece of construction equipment. But a construction site isn’t the only place this boom lift belongs. Use it for forestry work, on movie sets, painting, mining, and so much more.
Boom Lift JLG E400AJPN
500 lb / 226.80 kg
Max Forward Speed
3 mph / 4.83 km/h
4 ft 11 in. / 1.5 m
Load Body Width
4 ft / 1.2 m
500 lb / 226.80 kg
What can you do with an
Articulating Boom Lift JLG E400AJPN
- Agriculture tasks like harvesting and moving hay bales
- Picking up goods and transporting them
- Hoist heavy loads of products, produce, and more.
